DOUBLEMOTION

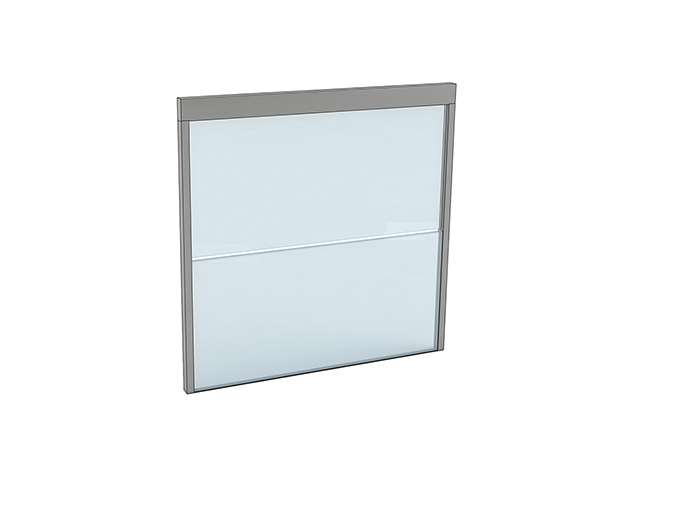

This system provides complete isolation. Half of total height is fixed and the other half is movable. It is ideal for pillared structures. Each module in this motorized system is independent. 10 mm tempered glass is used as a standard.


TECHNICAL SPECIFICATIONS

• It is an ideal sealing for areas exceeding 2500 mm height. It can be

applied up to 3000 mm

• 50% of total height is fixed and the other 50% is vertically moveable

• Moving glass is 10 mm float and tempered

• DoubleMotion system operates with complete (220 v) brand

electric motor SOMFY and it is remote controlled with radio signal

transmitter

• DoubleMotion system is isolated. Moving glass is stored in the

outer part of the fixed glass windows The gap between two glasses

is covered with the inner and outer wick

• Moving glass can be in any desired height. The system quickly

folds completely or individually

• 100% waterproof

• Wide choice of colors and ability to display logos

• It provides security without a lock

Width (mm):  1000, 1500, 2000, 2500, 3000

Height (mm): 1000, 1500, 2000, 2500, 3000

TECHNICAL CATALOG DOWNLOAD
